Home > Embedded Touch Panel PC >

Embedded Sensitive AIO Touch Pc 300cd/M2 Windows 10 18W VESA

Product Categories
Shenzhen Innoda Technology Co., Ltd. CN
Contact Now

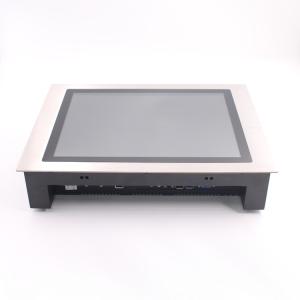

Embedded Sensitive AIO Touch Pc 300cd/M2 Windows 10 18W VESA

  • 1
  • 2

Brand Name : INNODAPC

Model Number : IND150PC

Certification : CE,RoHS, FCC

Place of Origin : Shenzhen,China

MOQ : 1piece

Price : Negotiable

Payment Terms : T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram

Supply Ability : 5000 pieces per month

Delivery Time : 12working days upon receive the payment

Packaging Details : 1pc/carton weight: 4kgs/pc, packing size: 41.5×35.5×15cm

Type : linux HMI Panel Pc

Size : INNODAPC 15inch LCD panel

Touchscreen : Resistive touch screen

CPU : Intel core i5-6200U

System : Windows 7/10(trial version) / LInux / Ubuntu

Material : Aluminum Metal case

WIFI : Optional

I/O port : USB, COM, Rj45, VGA, HDMI

Contact Now

Embedded Sensistive Touch AIO Pc True Flat Industrial Panel Pc Windows10

Features

1. Fully enclosed design, the whole PC is dustproof.
2. Front bezel stainless steel brushed metal craft, seamless design, front panel IP65 waterproof.
3. Big heat sink, good mechanical properties, excellent heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. High performance motherboard, 7x24 continuous operation.
7. Ultra-thin front bezel , ideal for embedded mounting.

Configuration

INNODAPC Processor System CPU Intel core i5-6200U
Memory 2GB (up to 8G)
Storage 32G SSD(up to 1TB)
Operation System WIndows 7/8/10 OS(trial version)
LCD Panel Characteristics Screen Size 15’’ LED Panel
Touchscreen Type Resistive touch screen
Resolution 1024(H)x 768(V)
Aspect Ratio 4:3
Brightness 300cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface COM 2 x COM
USB 4xUSB2.0
LAN 2xRJ45, 10/100/1000 Mbps
VGA Yes
Function(Optioanal) Front IP65
9-36V wide voltage
Optional AG / AR glass
8-36V wide range voltage
Brightness control button
1000nits High Brightness for sunlight readable
Front waterproof / Full sealed Waterproof
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with cable
Working Temperature -20~70° C
Other Information Material Stainless steel+ Metal frame
Color Black/Silver/White
Mounting VESA mount / Embedded


Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine

Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4. Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

Embedded Sensitive AIO Touch Pc 300cd/M2 Windows 10 18W VESA
